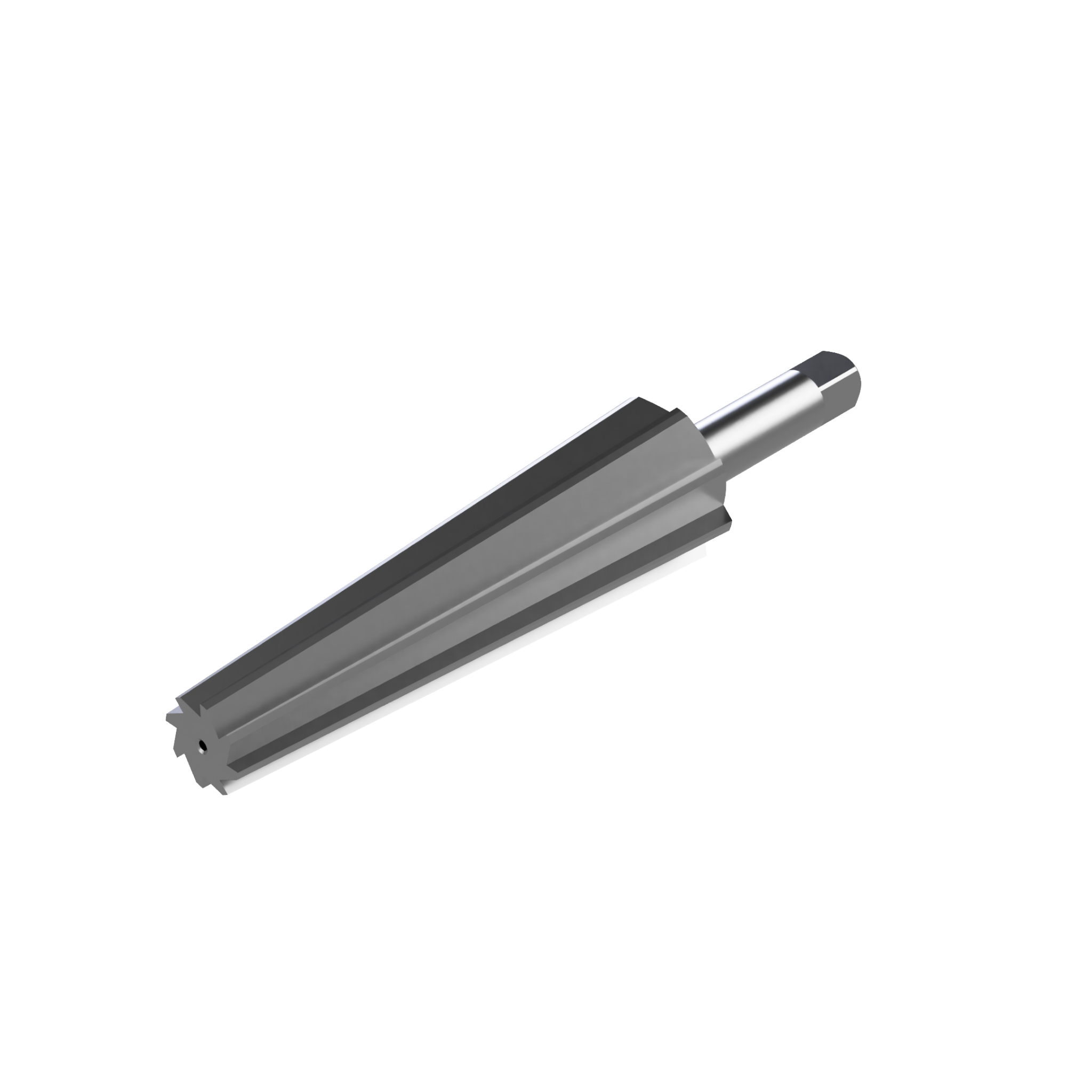

Our item #5925 is an oversized 1½” taper per foot ball joint and tie rod taper reamer made out of M2 high speed steel. This reamer is oversized and is for larger ball joints and tie rod ends found on construction vehicles, construction equipment, fire trucks, box trucks, semi-trucks, farm equipment, fork lifts, military equipment, and many more. This reamer will work for anything over ¾” on the small end at 1 ½” taper per foot.



SPECIFICATIONS

Over All Length: 6 ½”

Over All Flute Length: 4 ½”

Large End Diameter: 1 5/16”

Small End Diameter: ¾”

Shank Diameter: ½”

Flute Design: Straight

Flute Count: 8

Material: M2 High Speed Steel

Hardness: 64 Rockwell



USE

This reamer will do production runs and cut material quickly at speeds from 100 to 180 RPM. The use of a full pecking cycle and oil-based coolant is strongly recommended for maximum performance and finish. This reamer can be used by hand with a tap wrench or socket. It can also be used in a drill press or vertical mill with a ½” or larger drill chuck or ½” collet. Keep in mind, this reamer is not a drill. Run this reamer at half the speed (RPM) and twice the feed that you would a drill.



More Information

This M2 high speed 1½” taper per foot ball joint and tie rod taper reamer is brand new and manufactured with pride in the U.S.A. by XKUT. We are the manufacturer of this reamer. We offer an in-house $20.00 per reamer re-sharpening service (priority 2-day shipping to customer is included) on all XKUT reamers.
