Heise HE-SWP8 Universal 8 Gang Switch Panel System Sale High Quality

Original price was: $340.19.Current price is: $89.00.

This is the Heise HE-SWP8 universal switcher with 8 separate switch outputs, full relay control box with innavidual fused outputs. It makes integrating multiple lights/electrical accessories much simpler by combining switching and electrical outputs into one central device.

As taken from the Heise website:

“This gang switch panel system allows you to control up to 8 different auxiliary LED lights or electrical devices. With 50 different switch stickers included, the panel can be customized accordingly and has blue LED backlighting to illuminate the switches.

This versatile panel can handle all types of 12V DC accessories, can be installed in multiple positions and is ideal for all applications such as cars, trucks, Jeeps®, ATV/UTVs, RVs and even boat installations.

The compact control panel measures 2.6×4.6 inches while the under-hood mounted control box utilizes IBGT (Insulated Gate Bipolar Transistor) technology instead of bulky relays, and only has a 4.2×7.5 inch footprint.”

Specifications

Switched or momentary operation
Input Voltage: 12-24V DC
Power Handling: 600-1200 watts
Maximum Current: 60 amp
Panel Material: Die-cast aluminum
Control Box Material: Die-cast aluminum
Control Box Cover: ABS plastic
Operating Temperature: -40°F to 302°F
Panel Size: 4.53×0.59×2.60 inches
Circuit Box Size: 7.48×1.34×4.13 inches

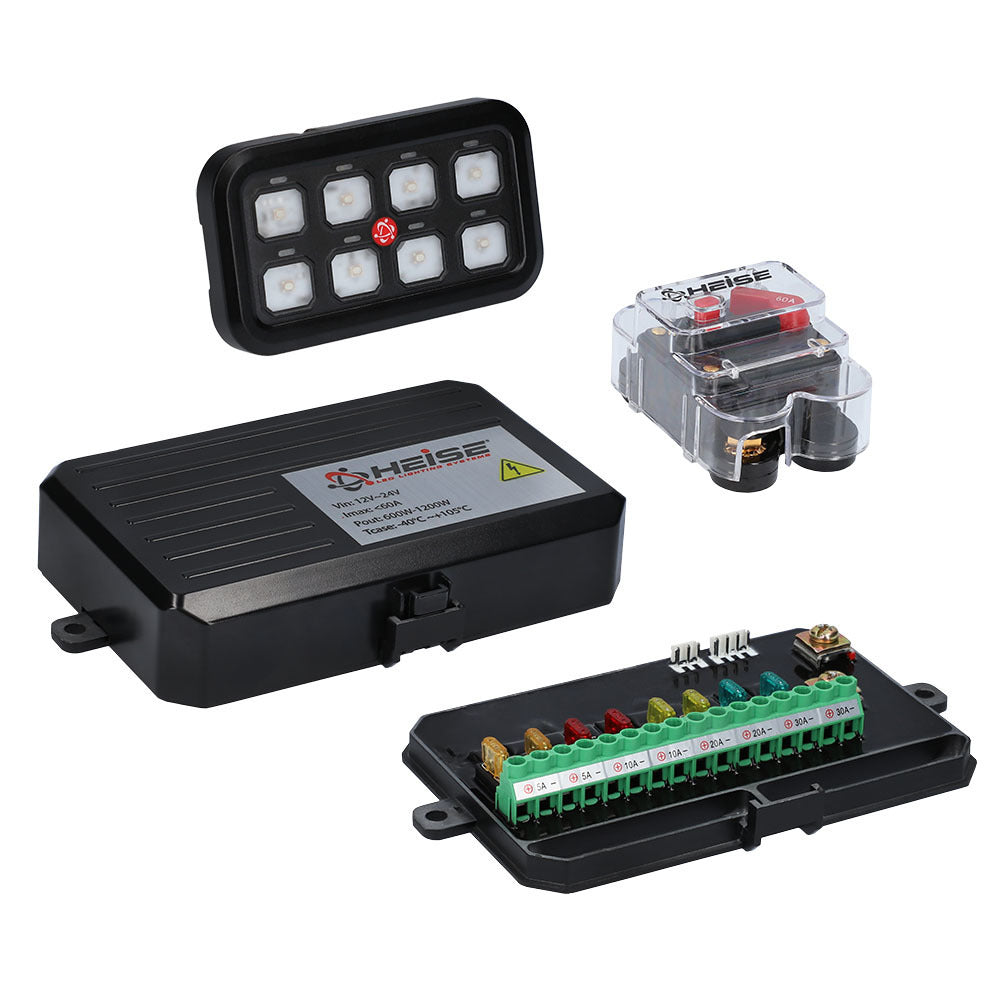

Products Included

Splash proof 8 gang switch panel
IP68 Control box with cover
(50) custom label decals
(6) extra fuses
60 amp resettable circuit breaker
Power harness and battery cables
(2) switch panel brackets
(1) control box bracket
Mounting hardware, screws and zip ties
Dash illumination control wire
